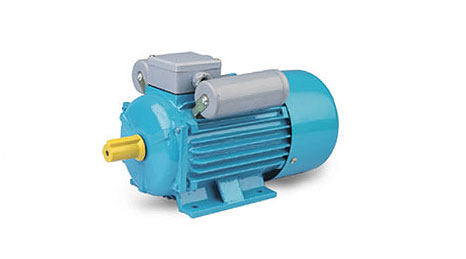

YC SERIES MOTOR heavy-duty single phase capacitor-start induction motors


These single-phase heavy-duty capacitor-start motors are made to iec standards. these are superior motors delivering excellent torque enabling the toughest jobs to be handled with dependable ease. they perform well in high voltage fluctuating regions and are commonly used in the pumping, compressor, agriculture, farming, building service and manufacturing industry.
the YCL SERIES MOTORs run cooler, have higher efficiency and starting torque than
the YC SERIES MOTORs.



ms-a

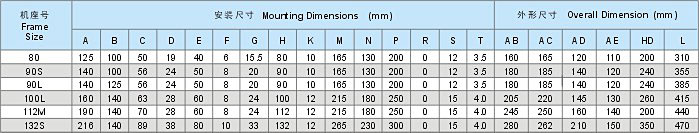

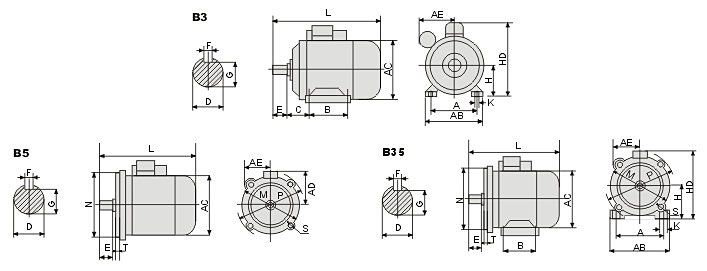

Installation Size and Overall Dimension
ms-a


Technical Data
Type
Output
Current
(v)
Current
(a)
Speed
(r.p.m)
Eff
(%)
Power
Factor
Starting Torque
Rated Torque
Starting current
Rated Current

Max Torque
Rated Torque

hp
kw
YC80A-2
1/2
0.37
230
 3.5
2880
62
0.73
2.8
6.5
1.8
YC80B-2
3/4
0.55
230
 5.1
2880
65
0.73
2.8
6.5
1.8
YC80C-2
1
0.75
230
 6.4
2880
68
0.75
2.8
6.5
1.8
YC90S-2
1.5
1.1
230
 8.7
2880
71
0.77
2.4
7.0
1.8
YC90L-2
2
1.5
230
 11.6
2900
72
0.78
2.4
7.0
1.8
YC100-2
3
2.2
230
 16.4
2900
74
0.79
2.1
7.0
1.8
YC80A-4
1/3
0.25
230
 3.3
1450
56
0.60
2.8
6
1.8
YC80B-4
1/2
0.37
230
 4.3
1450
60
0.62
2.8
6
1.8
YC80C-4
3/4
0.55
230
 5.7
1450
64
0.65
2.8
6
1.8
YC90S-4
1
0.75
230
 7.4
1450
67
0.66
2.4
6.5
1.8
YC90L-4
1.5
1.1
230
 10
1450
70
0.68
2.4
6.5
1.8
YC100L-4
2
1.5
230
 12.9
1450
72
0.70
2.4
6.5
1.8
YC112M-4
3
2.2
230
 18.5
1450
72
0.72
2.2
6.5
1.8
YC132SA-4
4
3
230
 24.1
1450
74
0.73
2.1
6.5
1.8
YC132SB-4
5
3.7
230
 28.7
1450
75
0.74
2.1
6.5
1.8
